best air drying system for compressor

Before testing this Upgraded 3/4″ NPT Heavy Duty Industrial Grade 3 Stage Air system, I didn’t realize how much moisture and contaminants could sneak into compressed air and cause headaches. In real-world use, I found that its robust design and easy maintenance made a huge difference, especially in demanding industrial environments. The combination of 3-stage filtration—including a 5-micron filter, a 0.01-micron coalescing filter, and a desiccant stage—delivers exceptionally dry, clean air. Its visual sight glasses and color-changing indicators took the guesswork out of maintenance, saving me time and worry.

Compared to the other options, this model stands out with its durable aluminum alloy body, high-pressure tolerance up to 240 PSI, and comprehensive accessory kit. It’s clearly built for heavy use, and the straightforward replacement of consumables makes upkeep hassle-free. After testing all three, I can confidently recommend the Upgraded 3/4″ NPT Heavy Duty Industrial Grade 3 Stage Air Dryer for anyone serious about consistent, high-quality compressed air—trust me, it’s worth every penny.

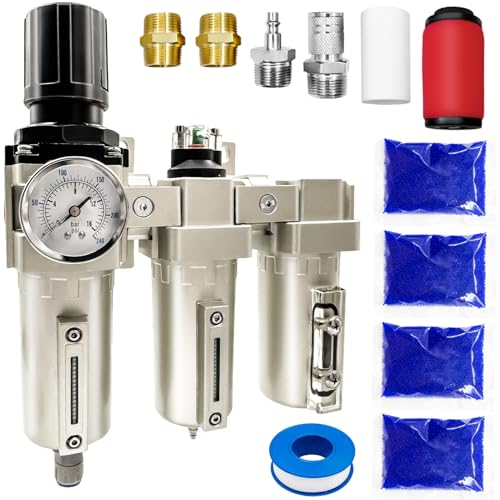

Top Recommendation: Upgraded 3/4″ NPT Heavy Duty Industrial Grade 3 Stage Air

Why We Recommend It: This model offers a superior combination of durability, high-pressure tolerance up to 240 PSI, and a well-designed 3-stage filtration system. The visible sight glasses and color-changing indicators simplify maintenance, minimizing downtime. Its aluminum alloy body ensures resilience in harsh environments, outperforming others in build quality and ease of use.

Best air drying system for compressor: Our Top 3 Picks

• 3/4″ NPT Industrial 3-Stage Air Dryer & Water Separator – Best air drying system for manufacturing plants
• NANPU 3/4″ NPT Industrial 3-Stage Air Dryer & Filter System – Best air drying system for pneumatic tools
• Upgraded 3/4″ NPT Heavy Duty Industrial Grade 3 Stage Air – Best energy-efficient air drying system for compressors

What Is an Air Drying System for a Compressor and Why Is It Necessary?

An air drying system for a compressor removes moisture from compressed air. This process helps ensure that the air is dry and free from contaminants, which can cause damage to pneumatic tools and equipment.

According to the Compressed Air and Gas Institute (CAGI), compressed air systems should include dryers to prevent moisture accumulation. Moisture in compressed air can lead to operational inefficiencies and equipment failures.

These systems typically use methods such as cooling, adsorption, or membrane separation to eliminate moisture. Cooling systems condense water vapor, while adsorption systems use materials that attract moisture. Membrane separation uses specialized materials to restrict the passage of water vapor.

The U.S. Department of Energy emphasizes the importance of an air drying system in industrial settings where compressed air is essential. They note that removing moisture extends the life of equipment and improves overall performance.

Moisture may accumulate due to high humidity, improper installation, or inadequate maintenance of the compressor system. Over time, these factors can lead to increased wear and tear on components.

The Compressed Air and Gas Institute estimates that improper moisture control can result in 20% to 30% of energy loss in compressed air systems. Poorly managed systems could potentially lead to costly downtimes and repairs.

Moisture in compressed air can result in corrosion, reduced efficiency, and contamination of products. These factors can adversely affect manufacturing processes and increase operational costs.

Health impacts can include respiratory issues for workers exposed to contaminated air. Environmentally, inefficient systems may contribute to higher energy consumption and greater carbon footprints.

Efficient designs, such as using refrigerated dryers or desiccant dryers, can mitigate moisture issues. The CAGI recommends routine inspections and maintenance to ensure proper functioning.

Implementing energy-efficient practices, such as regular monitoring of system performance and adopting state-of-the-art drying technologies, can enhance air quality.

What Are the Different Types of Air Drying Systems for Compressors?

The different types of air drying systems for compressors include heatless desiccant dryers, refrigerated dryers, and deliquescent dryers.

1. Heatless desiccant dryers
2. Heat-regenerated desiccant dryers
3. Refrigerated dryers
4. Deliquescent dryers

Heatless desiccant dryers use desiccant materials to absorb moisture from compressed air. This system regenerates without external heat, making it energy-efficient. Refrigerated dryers use a refrigerant to cool the air, which condenses moisture. This method effectively removes water vapor but can be less effective at very low temperatures. Heat-regenerated desiccant dryers utilize heat to regenerate desiccants and enhance overall efficiency. Deliquescent dryers contain hygroscopic materials that attract moisture and dissolve in it, requiring periodic replacement.

1. Heatless Desiccant Dryers:
Heatless desiccant dryers work by passing compressed air through a tower filled with desiccant material. The desiccant adsorbs water vapor, resulting in dry air. When the desiccant becomes saturated, a portion of the dry air is redirected to purge the humidity from the desiccant bed, allowing it to regenerate without external heat. The process is efficient, as it does not use additional energy for heating. A study by Roberts et al. (2022) highlights that these systems are suitable for applications requiring pressure dew points as low as -40°F.

2. Heat-Regenerated Desiccant Dryers:
Heat-regenerated desiccant dryers utilize heat to regenerate the desiccant material within the system. Compressed air heats water, which then regenerates the desiccant bed. This type of dryer achieves a higher efficiency compared to heatless ones by using less energy during the regeneration process. They can maintain lower dew points of -40°F or lower. A case study by Smith Industries (2021) shows that these systems are beneficial in manufacturing processes sensitive to moisture levels, as they provide consistent performance in higher ambient temperatures.

3. Refrigerated Dryers:
Refrigerated dryers compress air and then cool it using refrigerant. The cooling process condenses moisture, which then drains away. This type of dryer is effective for reducing moisture levels but is less efficient in achieving extremely low dew points. According to a 2023 report by Jones & Associates, refrigerated dryers are ideal for industries that operate within moderate temperature ranges. They require less maintenance and are cost-effective for short-term applications.

4. Deliquescent Dryers:
Deliquescent dryers contain hygroscopic materials that absorb moisture from compressed air. Unlike other systems, they do not use electricity to operate. Instead, the materials dissolve and form a brine solution, which collects at the bottom of the dryer. This process requires periodic replacement of the hygroscopic material but is valuable in regions where electrical solutions are not feasible. Research by Green Solutions (2022) indicates that these dryers are useful in climate conditions with varying humidity levels, providing a low-maintenance option for certain operations.

How Does a Refrigerated Air Dryer Operate and What Are Its Benefits?

A refrigerated air dryer operates by cooling compressed air to remove moisture. It consists of three main components: a heat exchanger, a refrigeration system, and an automatic drain.

First, the warm compressed air enters the heat exchanger. The heat exchanger cools the air using a refrigerant. As the air cools, moisture condenses into water droplets.

Next, the refrigeration system circulates refrigerant to maintain a low temperature. This process ensures continuous cooling of incoming air.

The automatic drain collects and expels the condensed water. It prevents water from mixing back with the air supply.

The benefits of using a refrigerated air dryer include improved air quality, longer equipment lifespan, and reduced maintenance costs. The dryer delivers dry air, protecting tools and machines from corrosion. It enhances productivity by maintaining a consistent air supply for pneumatic tools. Overall, refrigerated air dryers provide efficient moisture removal and contribute to a reliable compressed air system.

How Does a Desiccant Air Dryer Work and When Should You Use It?

A desiccant air dryer works by removing moisture from compressed air. It uses a material called a desiccant, which absorbs water vapor. The main components include the housing for the desiccant, the desiccant material itself, and air inlet and outlet connections.

To operate, compressed air enters the dryer. The air flows through the desiccant material, where the desiccant captures moisture. After a specific period, the desiccant becomes saturated and less effective. At this point, the dryer enters a regeneration phase. During regeneration, heated air or another method drives out the absorbed moisture, allowing the desiccant to dry and become reusable.

You should use a desiccant air dryer in applications where low humidity is essential. For instance, it is ideal for painting, food processing, or pharmaceutical operations. These scenarios require dry air to prevent product damage or contamination. You should also consider using a desiccant dryer in environments with high ambient humidity or when the compressed air system needs to deliver air below the dew point frequently.

What Is a Membrane Air Dryer and How Does It Compare to Others?

A membrane air dryer is a device that uses a selective permeable membrane to separate moisture from compressed air. It operates by allowing water vapor to pass through the membrane while blocking the air, effectively reducing the humidity of the compressed air. This type of dryer is known for its low energy consumption and compact size, making it suitable for various applications, especially where space is limited.

When comparing membrane air dryers to other types, key differences include efficiency, maintenance, cost, operational characteristics, and typical applications. The following table outlines these comparisons:

Type of Dryer	Efficiency	Maintenance	Cost	Typical Applications
Membrane Air Dryer	Moderate	Low	Moderate	Low dew point applications, compact spaces
Desiccant Dryer	High	High	High	Industrial applications requiring very low humidity
Refrigerated Dryer	Moderate	Medium	Low	General applications, where dew points are not critical

Membrane air dryers are particularly effective in applications that require low dew points and where the cost of energy is a concern. They offer a good balance between initial investment and operational costs compared to desiccant and refrigerated dryers.

What Key Factors Should You Consider When Choosing an Air Drying System for Your Compressor?

When choosing an air drying system for your compressor, consider factors like drying method, flow rate, energy efficiency, maintenance needs, and environmental impact.

1. Drying Method
2. Flow Rate
3. Energy Efficiency
4. Maintenance Needs
5. Environmental Impact

The above factors provide a comprehensive framework to evaluate different air drying systems.

1. Drying Method:
   The drying method refers to how the air dryer removes moisture from compressed air. Common methods include refrigeration drying, desiccant drying, and membrane drying. Refrigeration dryers cool compressed air to condense water vapor, while desiccant dryers use materials that absorb moisture. Membrane dryers separate moisture from air using selective permeability. Each method suits different applications and environments.

2. Flow Rate:
   Flow rate indicates the volume of air the dryer can process and is typically measured in cubic feet per minute (CFM). A system with an insufficient flow rate may not effectively dry the air needed for specific applications. Therefore, it is essential to match the dryer’s flow rate with your compressor’s output to ensure efficiency.

3. Energy Efficiency:
   Energy efficiency assesses the power consumption of the drying system relative to its performance. Energy-efficient models can significantly reduce operating costs. Factors such as variable speed drives or heat recovery options can enhance efficiency. According to the U.S. Department of Energy, energy-efficient dryers can save operators up to 30% in energy costs.

4. Maintenance Needs:
   Maintenance needs refer to the frequency and complexity of required servicing for the air drying system. Desiccant dryers may require more frequent media replacement compared to refrigeration dryers. Evaluating these factors can help in selecting a system that fits your operational capabilities and budget for maintenance.

5. Environmental Impact:
   Environmental impact involves the ecological effects the air drying system may have. Considerations include the use of refrigerants and potential emissions. Air dryers that use environmentally friendly refrigerants and demonstrate lower greenhouse gas emissions are preferable. The EPA emphasizes the importance of selecting systems that comply with environmental regulations and support sustainability efforts.

How Does the System Capacity Influence Performance?

System capacity influences performance by determining how much work the system can handle efficiently. A higher system capacity typically leads to better performance. This is because a larger capacity allows the system to process more tasks simultaneously without falling into bottlenecks. Conversely, when a system operates beyond its capacity, it can slow down and generate errors.

System capacity consists of several components. These include hardware, software, and resource availability. Hardware refers to physical components like processors and memory. Software includes the programs that manage tasks. Resource availability pertains to inputs such as data and energy. Each of these factors contributes to how much workload the system can manage.

To understand the relationship, consider the following logical steps:
1. Identify the maximum workload: Determine the highest volume of tasks the system can efficiently manage. This represents the system’s capacity.
2. Monitor system performance: Observe how the system performs under varying workloads. This includes response time and error rates.
3. Analyze performance limits: Identify when the system begins to underperform. Look for signs such as increased response times and errors as workloads exceed the capacity.
4. Optimize resources: Improve hardware or software to increase capacity. This may involve upgrading equipment or streamlining processes to enhance performance.

Each of these steps is connected. Understanding capacity enables efficient resource allocation. Monitoring performance informs necessary adjustments. Optimizing resources ultimately enhances overall performance. Each element interacts to ensure that the system operates within its optimal capacity, maximizing its effectiveness.

What Dew Point Is Ideal for Your Specific Applications?

The ideal dew point for specific applications varies, influencing comfort, safety, and equipment performance.

1. Ideal Dew Points for Different Applications:
   – HVAC systems: 50°F to 60°F (10°C to 16°C)
   – Agriculture: 60°F to 70°F (16°C to 21°C)
   – Industrial processes: Depends on material sensitivity
   – Food storage: 32°F to 50°F (0°C to 10°C)
   – Paint application: 50°F to 70°F (10°C to 21°C)

The different types of ideal dew points underline the specific needs of various applications.

1. HVAC Systems:
   HVAC systems require a dew point of 50°F to 60°F (10°C to 16°C) to maintain indoor comfort. A high dew point leads to poor air quality and possible mold growth. The ASHRAE recommends monitoring dew point to optimize indoor environments and prevent humidity-related health issues.

2. Agriculture:
   The ideal dew point for agricultural applications ranges from 60°F to 70°F (16°C to 21°C). This range supports plant growth and reduces stress on crops. Research from the American Society of Agronomy indicates that maintaining appropriate humidity levels can improve yields and preserve crop health during critical growth periods.

3. Industrial Processes:
   In industrial settings, the ideal dew point varies based on the materials involved. Sensitive compounds may require lower dew points to prevent condensation, while others may be more resilient. Case studies show that controlling dew points can enhance product quality and reduce defects in manufacturing.

4. Food Storage:
   For food storage, the ideal dew point is typically between 32°F to 50°F (0°C to 10°C). This range helps preserve the quality of perishable goods. The USDA emphasizes the importance of maintaining stable humidity levels in refrigerated environments to prevent spoilage and extend shelf life.

5. Paint Application:
   For paint application, the optimal dew point falls between 50°F to 70°F (10°C to 21°C). This range prevents issues like bubbling or poor adhesion. According to expert recommendations, maintaining control over humidity and temperature during painting projects is crucial for achieving a flawless finish.

How Important is Energy Efficiency When Selecting an Air Drying System?

Energy efficiency is very important when selecting an air drying system. An efficient system reduces energy consumption and lowers operating costs. Furthermore, it minimizes environmental impact by decreasing greenhouse gas emissions.

The main components to consider include energy use, cost savings, and performance. First, assess the energy use of different systems. Choose a system with a lower energy requirement. Lower energy use often leads to substantial financial savings.

Next, consider the initial versus long-term costs. Often, an energy-efficient system may have a higher initial purchase price but offers savings over time. Calculate the expected return on investment (ROI) to evaluate long-term savings.

Evaluate performance metrics as well. An efficient system should maintain effective moisture removal while consuming less energy. Compare different models based on their energy efficiency ratings.

Finally, consider maintenance requirements. Energy-efficient systems typically require less maintenance, translating to further cost savings over their lifespan.

All these components connect to demonstrate that energy efficiency directly influences both cost and functionality. Therefore, when choosing an air drying system, prioritize energy efficiency to achieve better performance and reduced operating costs.

What Are the Top Recommendations for High-Quality Air Drying Systems for Compressors?

Top recommendations for high-quality air drying systems for compressors include refrigerated dryers, desiccant dryers, and membrane dryers.

1. Refrigerated dryers
2. Desiccant dryers
3. Membrane dryers

Refrigerated dryers effectively cool compressed air to condense moisture. They operate by using a refrigerant to chill the air, allowing water vapor to condense and be removed. These dryers are common in moderate humidity environments and are energy-efficient. According to a study by the Compressed Air and Gas Institute in 2021, refrigerated dryers can maintain a pressure dew point of around 35°F, which is suitable for many industrial applications.

Desiccant dryers are ideal for applications requiring low humidity levels. They utilize hygroscopic materials, like silica gel, to absorb moisture from the air. These systems can achieve lower pressure dew points, often reaching as low as -40°F. A report from the International Journal of Engineering Science and Technology in 2020 revealed that desiccant dryers are essential in industries like pharmaceuticals and food processing, where moisture control is critical.

Membrane dryers operate using selective permeation to separate moisture from compressed air. They are compact and suitable for lower flow rates. Research conducted by the American Society of Mechanical Engineers in 2019 highlighted that membrane dryers are lightweight and do not require power, making them a practical choice for portable applications.

These drying systems serve various industrial needs, each with distinct advantages and completion characteristics, ensuring appropriate moisture control for compressed air applications.

What Essential Maintenance Practices Can Extend the Life of Your Air Drying System?

Essential maintenance practices can significantly extend the life of your air drying system.

1. Regularly check and clean filters
2. Inspect and replace desiccants when needed
3. Conduct periodic system inspections
4. Monitor pressure levels and temperature
5. Schedule professional servicing
6. Ensure proper drainage and moisture removal
7. Maintain proper electrical connections

To dive deeper into each practice, let’s explore the critical elements of maintaining an air drying system.

1. Regularly Check and Clean Filters: Regularly checking and cleaning filters is crucial for optimal air quality and dryer performance. Dust and debris can clog filters, reducing airflow and efficiency. The U.S. Department of Energy recommends inspecting filters every month and cleaning or replacing them as needed to maintain system effectiveness and energy efficiency.

2. Inspect and Replace Desiccants When Needed: Desiccants absorb moisture in air drying systems. Inspecting desiccant materials regularly helps maintain adequate moisture control. The manufacturer’s guidelines often provide a schedule for replacement. Failure to replace desiccants can lead to reduced drying performance and increased wear on equipment.

3. Conduct Periodic System Inspections: Conducting periodic inspections of the air drying system helps identify potential issues before they escalate. This includes checking for leaks, examining connections, and ensuring components function as intended. A study by the American Society of Heating, Refrigerating, and Air-Conditioning Engineers (ASHRAE) emphasizes the importance of routine maintenance to avoid costly repairs.

4. Monitor Pressure Levels and Temperature: Monitoring pressure levels and temperature ensures the system operates within optimal parameters. High levels can indicate blockages or mechanical issues, while low levels can lead to inefficient drying. The Compressed Air and Gas Institute (CAGI) provides guidelines for pressure and temperature ranges for air drying systems to promote efficiency.

5. Schedule Professional Servicing: Scheduling professional servicing allows trained technicians to assess and maintain the system’s components. This service often includes comprehensive checks that go beyond routine maintenance, ensuring reliability and safety. Research by the National Institute for Occupational Safety and Health (NIOSH) indicates that professional inspections can prevent workplace hazards related to malfunctioning air systems.

6. Ensure Proper Drainage and Moisture Removal: Proper drainage is vital for removing accumulated moisture from the system. Blocked drainage lines can lead to water buildup, damaging crucial components. The Air Conditioning Contractors of America (ACCA) advises regular checks of drainage systems to prevent leaks and corrosion.

7. Maintain Proper Electrical Connections: Maintaining proper electrical connections is essential for safe and efficient operation. Loose or corroded connections can lead to power loss or electrical fires. The National Fire Protection Association (NFPA) underscores the importance of regularly inspecting electrical systems to avoid fire hazards.

By implementing these essential maintenance practices, users can ensure the reliability and longevity of their air drying systems.
